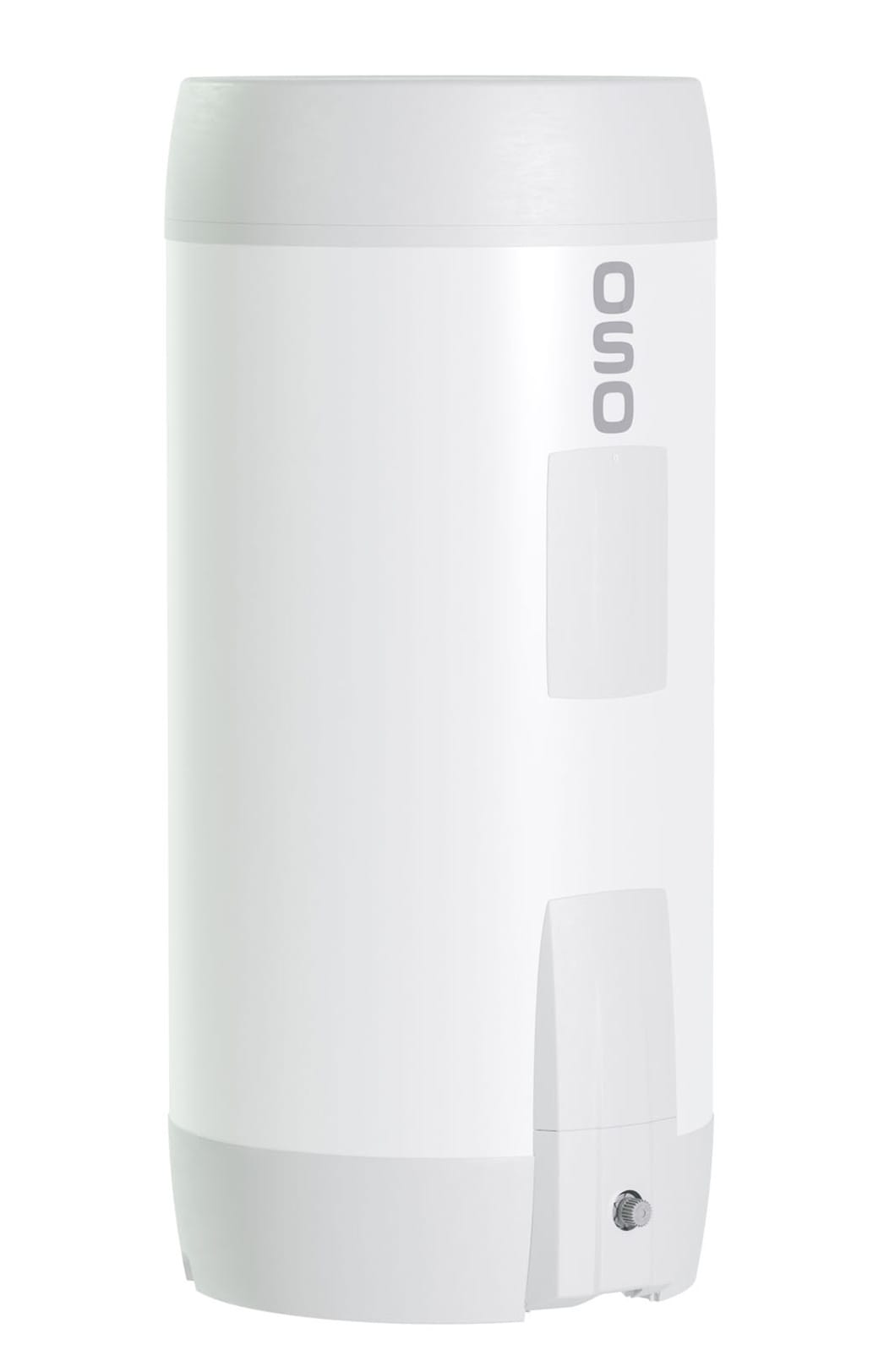

SUPER 2.0 XPRESS – SX

Direct Hot Water Cylinder - Electric pre-plumbed

The SUPER 2.0 XPRESS  is an electrically heated direct hot water unvented cylinder that has a unique pre-plumbed patented design making the installation quick and efficient; with concealed cable routing, integral concealed expansion vessels and all the pipework connections on top of cylinder hidden under a lid. S2X has a 25 year warranty.

S2X is insulated with 4th generation PUR foam , ensuring reduced heat loss and energy consumption. In addition, the OSO S2X has up to 30% higher hot water capacity than the competition, enabling a lower volume cylinder thus saving on both cost and energy usage. Downsizing also saves space and improves the already low heat loss figure, further helping with SAP/building regulations Part L compliance.

S2X provides mains pressure hot water to all showers and outlets without the need of a pump.

S2X to 210 litres can share a footprint with a washing machine, using additional washing machine frame.

S2X is factory fitted with a flow through expansion valve with minimum pipework to the vessels in accordance with the S2X building and water regulations approval.

WHY SUPER XPRESS?
30% MORE HOT WATER than other cylinders enabling cylinder to be downsized
Titanium immersion heaters
Fully  pre-plumbed and wired
Downsizing reduces heat loss figure
Integral expansion vessels
Labour saving up to 70%
Shortest cylinder system on the market
Unique patented design with a 25 year warranty
Fitting template provided
Pipes and cables hidden
Easy installation

Advantages

  • S-DESIGN – All connections hidden
  • NANOPUR – High-grade insulation
  • ULTRAWELD – Superior corrosion resistance
  • TITANIUM IMMERSION – High durability in hard water
  • TARIFF-READY – Twin immersion heaters (single on 120)

Key components

  • Mixing valve – Preset 60°C
  • Thermostat – Adjustable 40-75°C immersion – 3kW/3+3kW
  • P&T safety valve – 10 bar – 90-95°C
  • Integrated G3 kit including:
  • Expansion vessel 2 x 8L supplied factory fitted*
  • Strainer
  • PRV
  • Expansion relief
  • Drain cock
  • Tundish

*.1 vessel on 120L and 150L

Description

Advantages

Components

*.1 vessel on 120L and 150L

Additional information

Weight 150 kg
Dimensions 3.5 cm
SpecificationsUNITS2X 120 - 3 kW / 1 × 240 VS2X 150 - 3+3 kW / 1 × 240 VS2X 180 - 3+3 kW / 1 × 240 VS2X 210 - 3+3 kW / 1 × 240 VS2X 250 - 3+3 kW / 1 × 240 VS2X 300 - 3+3 kW / 1 × 240 V
Identification
Product no.OSO110116851101168611011687110116881101168911011690
Product nameS2X 120S2X 150 S2X 180S2X 210 S2X 250 S2X 300
Dimensions
Diameter — ⌀mm595595595595595595
Height - Hmm92011101200137516451780
Weightkg143191218246304336
Weight emptykg284042445056
Technical/ErP information
Capacity 40CL193260323353464495
VolumeL115151176202254280
Thermostat set pointC757575757575
Heat loss-EN 12897watt405457647782
Heat loss / 24 hrs - EN 12897kWh/day0,961,2961,3681,5361,8481,968
AEC (energy consumption)kW/year2737452845244482453494478
Energy efficiency%37.4373737.438.537.4
Tapping profile3XS–XXLLXLXLXLXLXL
Energy ratingA+–FCDDDCD
Primary Heating PowerkWN/AN/AN/AN/AN/AN/A
Primary coil sizeMinsN/AN/AN/AN/AN/AN/A
Immersion Heating Power3kW3kW+3kW3kW+3kW3kW+3kW3kW+3kW3kW+3kW
Heat-up time ΔT 55°C CoilMinsN/AN/AN/AN/AN/AN/A
Heat-up time ΔT 55°C upper elementMinsN/AN/AN/AN/AN/AN/A
Heat-up time ΔT 55°C lower elementMinN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C coil 70%MinsN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C upper element 70MinsN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C lower element 70%MinsN/AN/AN/AN/AN/AN/A

Advantages

  • S-DESIGN – All connections hidden
  • NANOPUR – High-grade insulation
  • ULTRAWELD – Superior corrosion resistance
  • INCOTEC – High durability in hard water
  • TARIFF-READY – Twin immersion heaters (single on 120)
