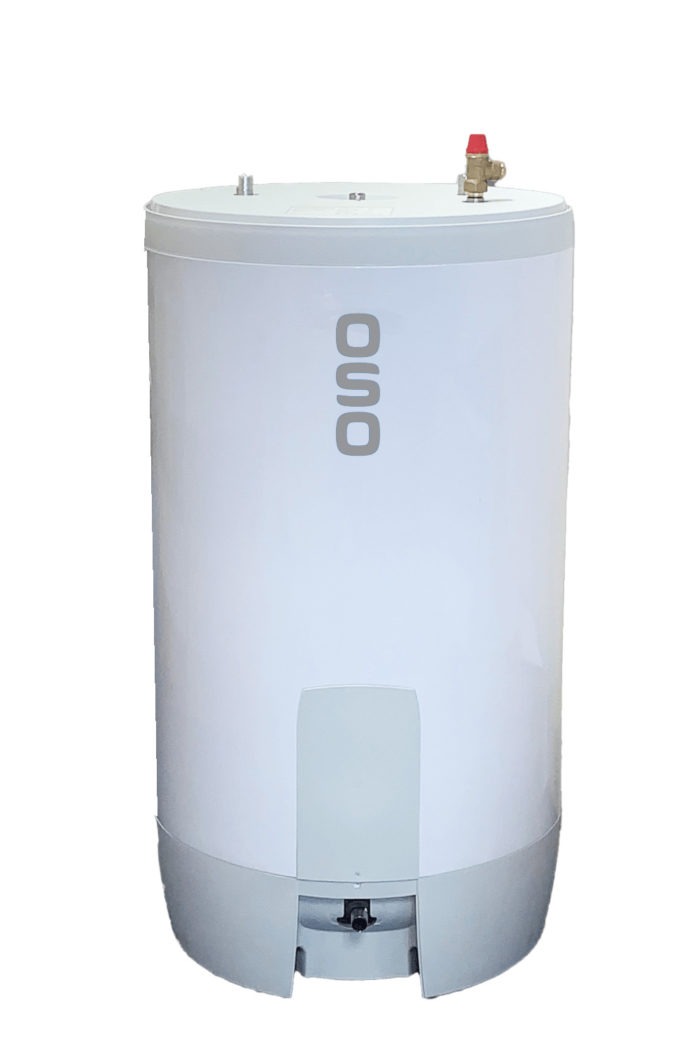

ECOLINE SCE

ECOLINE SCE is competitively priced, high performance unvented cylinder. Ecoline is supplied with full G3 kit and can interact with a boiler via thermostat or probe thermistor. Ecoline  heats the entire contents of the cylinder and is supplied with a back-up INCOTEC immersion heater.

ECOLINE SCE has low heat losses through use of NANOPUR* insulation. Smooth heating coils restrict the accumulation of limescale and provide fast heat up and recovery time. As with all OSO cylinders, the inner cylinder is has the superior corrosion resistance of ULTRAWELD and is guaranteed for 25 years. With a standard design at an affordable price, Ecoline is perfect as a replacement cylinder.

WHY ECOLINE SCE?
• Reduce heat loss by 300 kWh* / year with NANOPUR*
• Compatible with standard or thermistor controlled boilers
• 25 year warranty on the stainless steel tank
*Compared to 200 L cylinder with EPS insulation

Indirect Cylinder - ECOLINE SCE

Advantages

  • NANOPUR – Class-leading insulation
  • ULTRAWELD – Superior corrosion resistance
  • INCOTEC – High durability in hard water
  • SMOOTH COIL – Does not encourage limescale build-up

Key components

  • Immersion th.stat – Adjustable 40-70°C – Preset 60°C
  • Cylinder th. stat – Adjustable 40-70°C – Preset 60°C
  • T&P relief valve – 10 bar – 90-95°C
  • G3 kit – Strainer/PRV/exp. relief/ tundish
  • Motorized valve – Honeywell V4043H1056C
  • Expansion vessel – 12-24 L supplied
  • Appliance feet – Adjustable – Factory fitted

Description

Advantages

  • NANOPUR - Class-leading insulation
  • ULTRAWELD - Superior corrosion resistance
  • INCOTEC - High durability in hard water
  • SMOOTH COIL – Does not encourage limescale build-up

Components

  • Immersion th.stat - Adjustable 40-70°C - Preset 60°C
  • Cylinder th. stat - Adjustable 40-70°C – Preset 60°C
  • T&P relief valve - 10 bar – 90-95°C
  • G3 kit - Strainer/PRV/exp. relief/ tundish
  • Motorized valve - Honeywell V4043H1056C
  • Expansion vessel - 12-24 L supplied
  • Appliance feet - Adjustable – Factory fitted
SpecificationsUNITSCE120 - 3 kW / 1 × 230 V + HX 0,5 m²SCE150  - 3 kW / 1 × 230 V + HX 0,8 m²SCE180- 3 kW / 1 × 230 V + HX 0,8 m²SCE210 - 3 kW / 1 × 230 V + HX 0,8 m²SCE250  - 3 kW / 1 × 230 V + HX 0,8 m²SCE300  - 3 kW / 1 × 230 V + HX 0,8 m²
Identification
Product no.OSO1 327 0511 327 0521 327 0531 327 0541 327 0551 327 056
Product nameSCE120SCE150 SCE180SCE210 SCE250 SCE300 
Dimensions
Diameter — ⌀mm580580580580580580
Height - Hmm8159911101124114911691
Weightkg424752576470
Weight emptykg150188212243297341
Technical/ErP information
Capacity 40CL148198248281355376
VolumeL108141160186233271
Thermostat set pointC606060606060
Heat loss-EN 12897watt445261678084
Heat loss / 24 hrs - EN 12897kWh/day1,061,251,461,611,922,02
AEC (energy consumption)kW/yearN / AN / AN / AN / AN / AN / A
Energy efficiency%N / AN / AN / AN / AN / AN / A
Tapping profile3XS–XXLN / AN / AN / AN / AN / AN / A
Energy ratingA+–FBBCCCC
Primary Heating PowerkW131616171717
Primary coil sizeMins0.50.80.80.80.80.8
Immersion Heating Power3Kw3Kw3Kw3Kw3Kw3Kw
Heat-up time ΔT 55°C CoilMinsN/AN/AN/AN/AN/AN/A
Heat-up time ΔT 55°C upper elementMinsN/AN/AN/AN/AN/AN/A
Heat-up time ΔT 55°C lower elementMinN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C coil 70%MinsN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C upper element 70MinsN/AN/AN/AN/AN/AN/A
Recovery time ΔT 55°C lower element 70%MinsN/AN/AN/AN/AN/AN/A

Advantages

ECOLINE SCE is competitively priced, high performance unvented cylinder. Ecoline is supplied with full G3 kit and can interact with a boiler via thermostat or probe thermistor. Ecoline  heats the entire contents of the cylinder and is supplied with a back-up INCOTEC immersion heater.

ECOLINE SCE has low heat losses through use of NANOPUR* insulation. Smooth heating coils restrict the accumulation of limescale and provide fast heat up and recovery time. As with all OSO cylinders, the inner cylinder is has the superior corrosion resistance of ULTRAWELD and is guaranteed for 25 years. With a standard design at an affordable price, Ecoline is perfect as a replacement cylinder.

WHY ECOLINE SCE?
• Reduce heat loss by 300 kWh* / year with NANOPUR*
• Compatible with standard or thermistor controlled boilers
• 25 year warranty on the stainless steel tank
*Compared to 200 L cylinder with EPS insulation

Documents

Manual Ecoline SCE 120-300 litres
